Features
1.Fully automatic assembly of infusion needle-free connectors.
2.Including silicone pad insertion, leak detection, screwing, packaging sealing and other assembly processes.
3.Customize turntable or loop line production according to customers' actual capacity requirements.
4.Main power servo motor + indexing drive, which provide accurate assembly position and high quality accuracy.
5.Each assembly process is followed by detection function to ensure high qualified rate of assembly products.
6. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.
7. All driving and inspection systems made from outstanding international suppliers
8. All materials of the equipment are made of stainless steel + aluminum alloy, in line with clean room requirements and GMP standards.
9. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
Parameters
| Applicable products |
Types of needless connectors for infusion |
| Production speed |
2500-3000 pcs/hr |
| Rate of qualified product |
Above 98% |
| Rate of operation rate |
Above 95% |
| Power source |
AC380V,50Hz,3kw/h Compressed air:7kg/m3 |
| Dimension |
L3343×W2001×H1900(mm) |
| Weight |
About 4000Kg |
| Operator |
1set/person |
| Table height |
550mm |
|
|

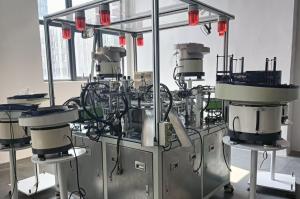

Outstanding International Suppliers for Driving and Inspection Systems of Medical Product Assembly Machine Images
|
